AUP系列沈水泵浦

Central^® AUP系列沈水泵浦不銹鋼電機外殼玻璃纖維強化機體可拆卸的濾網底盤防堵設計渦葉輪可以通過較大固體及纖維連續運轉沈水泵浦 FEATURES VORTEX IMPELLER FOR TOUGH-TORQUE FLOW Real Non-Clog performing volute impeller made of Fiberglass Reinforced Plastic (FRP) provides continuous operation with minimum abrasive wear and eliminates clogging and binding. Pumping is accomplished by induced high speed vortex which increase fluid pressure and minimize particle contact or entanglement of fibrous matter in wastewater and sludge. DETACHABLE STRAINER Dual use effluent and sewage handling design. Protect against damage from passing large rocks or metal objects. Safe guard for frog and fish. LARGE SOLID HANDLING PASSAGE For heavily polluted wastewater containing slender matter, long fibers and small or large solid particles. Suspended solids handling capacity: 35 mm (1.38 inch) in diameter ABRASION AND CORROSION RESISTANT Pump casing made of 304 stainless steel and fiberglass-reinforced engineering composite. The materials are strong and lightweight with high resistance to rust, corrosion, abrasion and impact RUGGED MOTOR Motor housing: Stainless steel - corrosion resistant and good heat dissipation. Motor: Oil free (air filled electric induction motor). Designed for durable continuous operation. HIGH QUALITY MECHANICAL SEALS Double Silicon Carbide mechanical seals (impeller side) in lubricant chamber. SiC provide greater hardness (approaching diamond), withstanding of pumping pressure, corrosion and abrasion resistant, self-lubrication and temperature fluctuation tolerance BUILT-IN OVERLOAD & THERMAL PROTECTION Self resetting automatic protection for motor against overload or overheat conditions.
SPECIFICATION

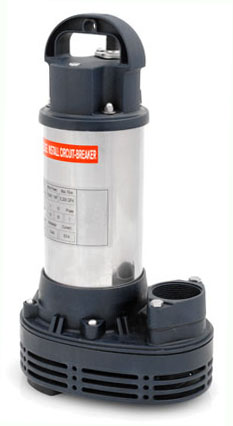

Central^® AUP系列沈水泵浦 AUP Series Water Pummp

不銹鋼電機外殼
玻璃纖維強化機體
可拆卸的濾網底盤
防堵設計渦葉輪可以通過較大固體及纖維
連續運轉沈水泵浦

VORTEX IMPELLER FOR TOUGH-TORQUE FLOW: Real Non-Clog performing volute impeller made of Fiberglass Reinforced Plastic (FRP) provides continuous operation with minimum abrasive wear and eliminates clogging and binding. Pumping is accomplished by induced high speed vortex which increase fluid pressure and minimize particle contact or entanglement of fibrous matter in wastewater and sludge.
DETACHABLE STRAINER: Dual use effluent and sewage handling design. Protect against damage from passing large rocks or metal objects. Safe guard for frog and fish.
LARGE SOLID HANDLING PASSAGE: For heavily polluted wastewater containing slender matter, long fibers and small or large solid particles. Suspended solids handling capacity: 35 mm (1.38 inch) in diameter
ABRASION AND CORROSION RESISTANT: Pump casing made of 304 stainless steel and fiberglass-reinforced engineering composite. The materials are strong and lightweight with high resistance to rust, corrosion, abrasion and impact
RUGGED MOTOR: Motor housing: Stainless steel - corrosion resistant and good heat dissipation. Motor: Oil free (air filled electric induction motor). Designed for durable continuous operation.
HIGH QUALITY MECHANICAL SEALS: Double Silicon Carbide mechanical seals (impeller side) in lubricant chamber. SiC provide greater hardness (approaching diamond), withstanding of pumping pressure, corrosion and abrasion resistant, self-lubrication and temperature fluctuation tolerance
BUILT-IN OVERLOAD & THERMAL PROTECTION: Self resetting automatic protection for motor against overload or overheat conditions.

SPECIFICATION

Pump Model	AUP-150	AUP-250	AUP-400	AUP-750
Discharge (FNPT)	50 mm, 2 inch
Outlet Adapter (MNPT x Insert)	2 inch barbed fitting
Inlet Size	35 mm, 1.4 inch(withstrainer removed)
Motor Output Rating	0.15 kW 1/4 HP	0.25 kW 1/3 HP	0.4 kW 1/2 HP	0.75 kW 1 HP
Voltage, Frequency, Phase	110 ~ 120V AC, 60Hz, Single Phase
Maximum Head	22 ft	29 ft	39 ft	49 ft
Maximum Capacity (110V, 60Hz)	3000 GPH	4200 GPH	5500 GPH	6300 GPH
Physical Dimension (L x W x H)	9.5"x7"x15"	9.5"x7"x15.75"	9.5"x7"x16.5"	9.5"x7"x17.5"
Net Weight	16 lb	19 lb	22 lb	25 lb
Power Cable	6m, 20 ft

CURVE

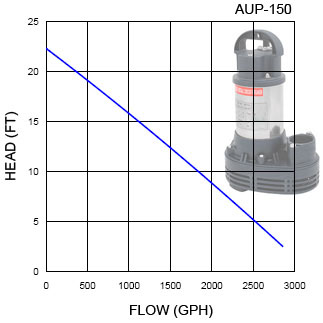

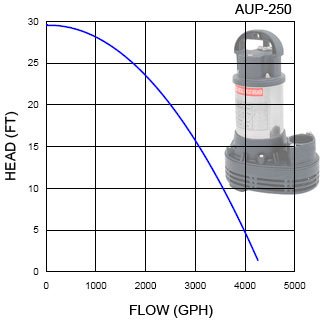

AUP-150 Curve	AUP-250 Curve

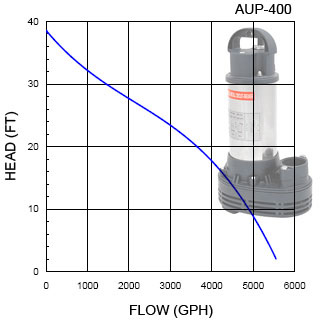

AUP-400 Cruve	AUP-750 Curve
